BOZENA 5

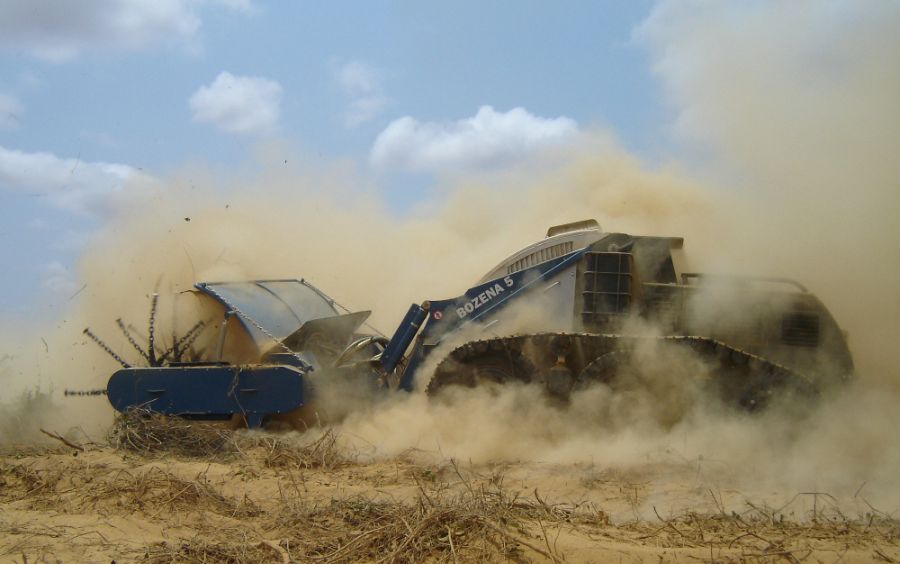

Unmanned ground vehicle BOZENA 5 is designed for clearance of all conventional antipersonnel and antitank land mines and for IED removal assistance. Its approach of SAFETY is based on remote control operation (range up to 5 000 m) and on the noteworthy blast resistance (9 kg TNT). BOZENA 5 can basically operate with both – the Flail and Tiller tools for effective mine clearance.
BOZENA 5 shall be suitable for clearance of large mine affected areas due to its potential, size and weight which is twice as big as previous generations of BOZENA machines. BOZENA 5 system consists of Prime mover and detachable working unit, basically the Flail or Tiller for demining works. Furthermore, its capabilities are enriched by a field-proven concept of VERSATILITY with wide range of accessories and attachments available for C-IED (counter improvised explosive devices) operations and for field construction works.
BOZENA systems successfully deal with any demining challenge worldwide and as the real tool for the real job have enjoyed the trust and satisfaction of end-user for more than 15 years.
| Length total (with Flail and rear hinge) | 7 320 mm |
| Length of Prime mover | 5 020 mm |
| Length of Flail | 2 310 mm |
| Length of Tiller | 2 060 mm |
| Width of Prime mover with tracks | 2 400 mm |
| Width of Flail | 3 350 mm |
| Height of Prime mover | 2 400 mm |
|
|
|
| Weight total – with Flail | 12 340 kg |
| Weight of Prime mover | 10 240 kg |
| Weight of Flail | 2 100 kg |
| Weight of Tiller | 2 900 kg |
|
|
|
| Engine (EURO III standard) | TATRA T3C-928-81, turbo |
| Rated power at 1 800 RPM | 270 kW (362 HP) |
| Torque at 1 000 RPM | 1 850 Nm |
| Fuel consumption – average/max | 43,0 / 59,0 l/h |
|
|
|
| Mine clearance width | 2,6 m |
| Mine clearance depth – Flail/Tiller | up to 300/350 mm |
| Blast resistance | 9 kg TNT |
| Optimal RPM of Flail and Tiller | 300 – 500 |
| Working efficiency (max) – Flail/Tiller | 5 000 / 6 000 sq m/hour |
| Vegetation cutting – diameter/height | up to 35 cm / 5 m |
| Fuel tanks capacity | 270 l |
| Maximum speed | 9 km/h |
| Remote control – range/battery life | 5 000 m/11 hrs |
|
|
|
